At present, the demand for fume purification equipment is growing. Many consumers don't know how to install or what products they need to buy when they buy the equipment, so let's popularize it for everyone. What equipment is needed to build a fume purification equipment system?

請看下面的介紹，您可以清楚地了解到油煙凈化設備系統的內外組合結構。濟南排氣管廠家的油煙凈化器系統由以下六種結構組成:

Please see the introduction below, you can clearly understand the internal and external combination structure of the fume purification equipment system. The oil fume purifier system of Jinan exhaust pipe manufacturer consists of the following six structures:

收集罩用于收集廚房灶具上的煙灰，通常安裝在灶具的頂部。建議煙氣收集口到氣源的距離為0.8 - 1 m，上蓋口的吸入速度一般設置為0.25 - 0.5 m/s。設計師或工程師必須根據廚房的大小來決定購買的時鐘的大小。

The collection hood is used to collect the ash on the kitchen stove, which is usually installed on the top of the stove. It is recommended that the distance from the flue gas collection port to the gas source be 0.8 - 1 m, and the suction speed of the upper cover port be generally set as 0.25 - 0.5 m / s. The designer or engineer must decide the size of the purchased clock according to the size of the kitchen.

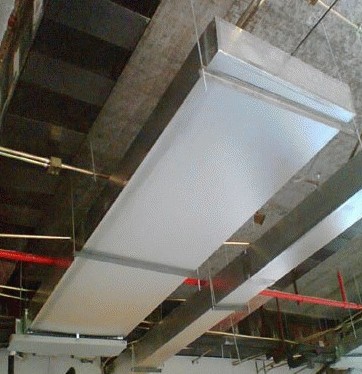

通風管道用于連接油煙凈化設備系統中的所有設備并輸送排煙。通風管道水平段不宜過長，更好在15米以內，且坡度應大于2%。為了方便將來的清潔和維護，您可以選擇在水平部分的末端連接一個union。

The ventilation pipe is used to connect all the equipment in the oil fume purification equipment system and convey smoke. The horizontal section of the ventilation pipe should not be too long, preferably within 15 meters, and the slope should be greater than 2%. To facilitate future cleaning and maintenance, you can choose to connect a union at the end of the horizontal section.

油煙凈化設備這是目前市場上的油煙凈化設備，其工作原理是當油煙廢氣經過高壓靜電場，油煙廢氣粒子與電子接觸并充電，經電場吸附。用于凈化排煙廢氣的凈化設備，減少污染氣體的排放。由于國內有傳統的餐飲單位需要安裝清潔的油煙凈化設備，并規定了油煙凈化設備的排放濃度和凈化效率，餐飲單位必須根據您的實際情況選擇油煙凈化設備。按爐頭風量為4000風量進行計算匹配。

The oil fume purification equipment is the most popular oil fume purification equipment in the market at present. Its working principle is that when the oil fume and exhaust gas pass through the high-voltage electrostatic field, the oil fume and exhaust gas particles contact with the electron and charge, and finally absorb by the electric field. Purification equipment used to purify exhaust gas and reduce the emission of pollutants. As there are traditional catering units in China that need to install clean fume purification equipment and stipulate the emission concentration and purification efficiency of fume purification equipment, catering units must select fume purification equipment according to your actual situation. It is calculated and matched according to 4000 air volume of furnace head.

紫外線除臭設備用于凈化油煙氣味，減少惡臭氣體的排放。對于一些生產車間或餐飲單位產生的辛辣氣味，如果油煙凈化設備不能完全凈化異味氣體，則需要借助附加氣味燈來去除異味設備來凈化異味。選擇抽油煙機的風量可以小于紫外線的風量來去除異味，因為抽油煙機本身也有一定的異味凈化功能。另外，紫外線去除異味的設備應安裝在通風凈化設備的后面。目前，常用的煙氣除塵設備有:紫外線去除設備、活性炭凈化設備。

Ultraviolet deodorization equipment is used to purify the smell of oil smoke and reduce the emission of odor gas. For the pungent odor produced by some production workshops or catering units, if the fume purification equipment can not completely purify the odor gas, additional odor lamp is needed to remove the odor equipment to purify the odor. The air volume of the range hood can be less than that of the ultraviolet ray to remove the peculiar smell, because the range hood itself has certain odor purification function. In addition, UV odor removal equipment shall be installed behind the ventilation and purification equipment. At present, the commonly used flue gas dust removal equipment are: UV removal equipment, activated carbon purification equipment.

風機是用來從通風管道排出廢氣，提供抽氣的動力設備。排氣速度不得低于8米/秒。否則，煤煙的緩慢流動會導致煤煙粘在煙囪上，但不宜太快。風速過快會導致粉塵凈化器凈化不完整，不符合規范要求，影響煙塵凈化效率。

The fan is used to exhaust the exhaust gas from the ventilation pipe and provide the power equipment for air extraction. The exhaust speed shall not be less than 8 m / s. Otherwise, the slow flow of soot will cause soot to stick on the chimney, but not too fast. Too fast wind speed will lead to incomplete purification of dust purifier, which does not meet the specification requirements, and affects the efficiency of dust purification.

引擎蓋用于阻止排氣口排出的廢氣，并防止廢氣直接排出。當準備煙凈化系統在初始階段,建筑結構設計人員或工程公司和其他有關人員應該清楚地了解網站的條件和澄清每個設備的實際操作參數,包括操作和風量優化煙塵凈化系統的性能。

The engine hood is used to prevent the exhaust gas from the exhaust port and prevent the exhaust gas from discharging directly. When preparing the smoke purification system in the initial stage, the architectural structure designer or engineering company and other relevant personnel should clearly understand the conditions of the website and clarify the actual operation parameters of each equipment, including operation and air volume optimization of the performance of the smoke purification system.
